How to Choose the Right Silicone Gasket?

Choosing the right Silicone Gasket is more than matching a familiar material to a flange. The gasket must suit the equipment, fluid, temperature, pressure, and installation method. A seal around a stainless-steel pipe may face hot water, cleaning chemicals, vibration, or repeated compression. Each condition changes the correct choice.

Small details matter. Measure the groove width and depth carefully. Check the flange surface for scratches, burrs, and uneven contact. Review the manufacturer’s temperature range, hardness, compression set, and chemical-resistance data. A gasket that feels soft may seal quickly, yet lose its shape under heat. A harder grade may resist deformation, but require better surface preparation. It is not always an easy trade-off.

Real applications often reveal problems that product catalogs hide. An experienced technician may notice swelling near a bolt hole or a flattened edge after one maintenance cycle. That evidence deserves attention. Appearance alone is unreliable. Always compare supplier test reports, batch information, and relevant material requirements before purchase. Food, pharmaceutical, and potable-water systems may need documented grades and traceable compliance. Industrial equipment may need a different compound entirely.

This guide examines these decisions in practical terms. It considers operating temperature, pressure, media compatibility, gasket geometry, hardness, and long-term maintenance. It also explains common selection mistakes, including excessive compression and unsuitable lubricants. Some recommendations still require verification on the actual equipment. No article can replace a controlled trial or qualified engineering review. Choose carefully. Seal performance depends on details.

Table of Contents [Hide]

1 Understanding Silicone Gasket Properties and Applications

2 Identifying Temperature, Pressure, and Chemical Requirements

3 Selecting the Right Gasket Shape, Size, and Thickness

4 Comparing Silicone Grades, Standards, and Performance Features

5 Checking Installation Conditions, Durability, and Maintenance Needs

Understanding Silicone Gasket Properties and Applications

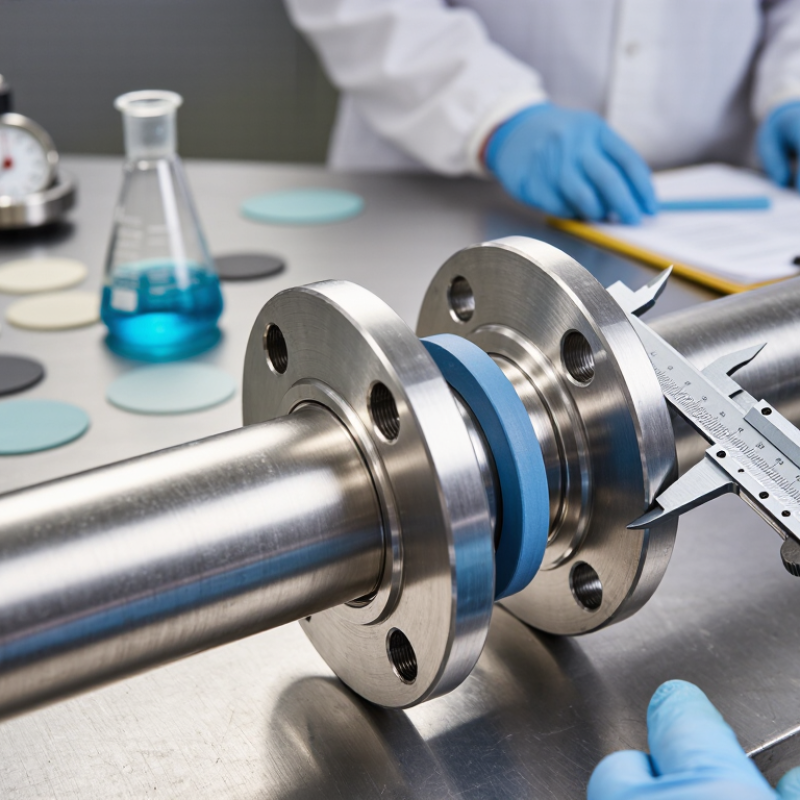

How to Choose the Right Silicone Gasket?

Understanding Silicone Gasket Properties and Applications begins with the service environment. Silicone remains flexible across wide temperature ranges. It also resists moisture, ozone, and aging better than many rubber materials. However, silicone is not ideal for every chemical or high-pressure system. Check the gasket’s temperature rating, hardness, and compression behavior before choosing it.

A soft gasket can seal uneven surfaces effectively. Yet, it may deform under heavy pressure. A firm gasket offers better support, but it needs cleaner, flatter contact surfaces.

Application details matter just as much. In food equipment, select a formulation suitable for the required hygiene standard. For outdoor enclosures, inspect resistance to sunlight, rain, and repeated temperature changes.

In electrical cabinets, silicone can protect against dust and moisture around doors and cable entries. Measure the groove carefully, including width, depth, and corner radius. Small errors can create leaks.

Field inspections often show that poor alignment causes more failures than material defects. I have also seen correct gaskets fail because installers stretched them during fitting. That detail is easy to overlook.

Tips:

Confirm the medium, temperature, pressure, and movement. Test a sample under real conditions when possible. Inspect compression after installation. Do not rely on color alone. Document the selected hardness and dimensions. A practical test may reveal an assumption that looked correct on paper.

Identifying Temperature, Pressure, and Chemical Requirements

Choosing a silicone gasket begins with actual service conditions, not color or softness. Record minimum, normal, and peak temperatures, including cleaning cycles and heat exposure. A gasket rated for 200°C may still fail after repeated thermal cycling. Temperature changes matter. Check compression set data at the operating temperature. Poor recovery can create leaks after several maintenance cycles. Measure flange gaps with a gauge, because drawings rarely show every distortion.

Pressure needs equal attention. Define steady pressure, vacuum exposure, and short pressure spikes. A seal facing pressure pulses may need better support or a different profile. Avoid selecting by pressure rating alone. Flange finish, bolt load, groove width, and gasket thickness all affect performance. In one practical review, a suitable gasket leaked because uneven tightening left a visible gap on one side. Small details dominate.

Chemical compatibility must match the exact fluid, concentration, temperature, and exposure time. Water, steam, oils, solvents, and cleaning agents can affect silicone differently. Look for swelling, softening, cracking, tackiness, or mass change after immersion testing. Use technical data, then confirm it with a sample under real conditions. Data can be incomplete. That is worth admitting. If fluid composition may change, test the worst credible mixture. Record results, inspect the seal closely, and replace it when damage appears, even without visible leakage.

Temperature
Select a compound whose continuous operating range covers the minimum and maximum temperatures. Typical silicone rubber operates from about −60°C to 200°C, while specialized compounds may extend the upper limit.

Pressure
Pressure capability depends on hardness, gasket geometry, compression, flange design, and extrusion clearance. Silicone is generally better suited to low- and moderate-pressure sealing than high-pressure dynamic service.

Chemical Compatibility
Silicone generally performs well with air, ozone, water, and dilute aqueous solutions, but may swell or degrade in many fuels, mineral oils, concentrated acids, and strong alkalis. Confirm compatibility with the exact chemical and temperature.

The temperature ranges shown are typical engineering values for common silicone gasket forms. Actual limits vary with formulation, exposure time, compression, and application conditions; always verify the supplier’s technical data before final selection.

Selecting the Right Gasket Shape, Size, and Thickness

How to Choose the Right Silicone Gasket?

Selecting the right silicone gasket starts with its shape. O-rings suit circular grooves, while frame gaskets protect covers, doors, and inspection windows. I have seen teams choose a flat gasket because it looked simple. That shortcut can fail. The gasket must match the mating surface, bolt pattern, corners, and groove geometry. For circular seals, measure the inside diameter, outside diameter, and cross-section carefully. ISO 3601 provides recognized dimensional guidance for O-rings and their tolerances. Small measurement errors can create uneven compression.

Thickness needs equal attention. A thin gasket may not fill surface scratches or flange distortion. An oversized gasket may require excessive bolt force and extrude under pressure. Many engineering guides use approximately 20–30% compression as a starting range for static silicone seals. It is not a universal rule. Temperature, pressure, surface finish, and silicone hardness can change the result. ASTM D395 is commonly used to evaluate compression set, while ASTM D2240 measures hardness. Use test data, not appearance. A 2024 global gasket-and-seal market analysis valued the sector at roughly 78 billion dollars, showing how widely these components are used. Yet market scale does not remove design mistakes. Leave room for thermal expansion, inspect the compressed profile, and question any drawing that ignores tolerance stack-up.

Comparing Silicone Grades, Standards, and Performance Features

How to Choose the Right Silicone Gasket?

Comparing Silicone Grades, Standards, and Performance Features

Choosing a silicone gasket depends on grade, standards, and actual service conditions. General-purpose silicone suits moderate sealing duties with stable temperatures. High-temperature grades handle heat better, but their performance still depends on pressure and exposure time. Platinum-cured silicone usually supports cleaner processing and lower extractable residues. Peroxide-cured compounds may need post-curing to reduce residual by-products. That difference matters.

A material certificate is useful, but it does not replace application testing. Check ASTM D2000 classifications, dimensional requirements, and supplier test methods. For food-contact applications, verify compliance with applicable FDA or EU requirements. Medical assemblies may require biocompatibility evidence under ISO 10993. Ask for batch traceability, hardness data, tensile strength, elongation, and compression-set results. Do not treat one certificate as universal proof. Records matter.

Compare hardness with the gasket’s compression and sealing geometry. Compression set often predicts long-term sealing loss better than hardness alone. Tear strength matters when installers stretch or remove the gasket. Gas permeability deserves attention in vacuum or sensitive-fluid service. A soft gasket may seal uneven surfaces, but it can extrude under pressure. Surface finish, mold flash, and storage conditions also influence performance. Real assemblies are less tidy than datasheets. Even careful selection can miss a temperature cycle or chemical interaction. A small pilot test can expose that weakness before full production.

How to Choose the Right Silicone Gasket? - Comparing Silicone Grades, Standards, and Performance Features
Silicone Grade	Typical Hardness	Temperature Capability*	Key Performance Features	Typical Chemical Compatibility	Common Standards or Compliance Options	Recommended Applications	Important Limitations
General-Purpose VMQ	40–80 Shore A	Approximately −50 to +200 °C	Excellent flexibility, weathering resistance, ozone resistance, electrical insulation, and broad working-temperature capability.	Generally suitable for water, dilute acids and alkalis, many salts, and selected oils.	May be specified to ASTM D2000 silicone classifications; food-contact or potable-water requirements must be verified separately.	Static flanges, covers, doors, outdoor enclosures, lighting seals, and general industrial gaskets.	Limited resistance to concentrated acids, strong alkalis, abrasive media, fuels, and many hydrocarbon oils.
High-Consistency Rubber (HCR)	30–90 Shore A	Approximately −60 to +200 °C	Good mechanical strength, tear resistance, compression-set performance, and dimensional stability when properly compounded and cured.	Good resistance to water, steam under suitable conditions, ozone, and many environmental exposures.	Can be manufactured to ASTM D2000 requirements; additional testing may include ASTM D395 compression set and ASTM D412 tensile properties.	Die-cut gaskets, molded seals, appliance seals, industrial equipment, and large-profile sealing components.	Processing normally requires molding or extrusion; performance depends strongly on cure system, post-cure, and compound formulation.
Liquid Silicone Rubber (LSR)	10–80 Shore A	Approximately −50 to +200 °C	Excellent flow into detailed molds, consistent automated processing, low volatile content after suitable post-curing, and good repeatability.	Suitable for water, many aqueous solutions, ozone, and outdoor exposure; chemical resistance varies by formulation.	May be formulated for FDA 21 CFR 177.2600, USP Class VI, or other application-specific requirements; certification must be confirmed for the exact compound.	Precision molded gaskets, medical components, food-contact seals, valves, and high-volume parts with intricate geometry.	Usually less suitable than reinforced or specialty compounds for high-abrasion service, sharp edges, or high mechanical loading.
Platinum-Cured Silicone	20–80 Shore A	Approximately −50 to +200 °C	Low extractables and low odor potential, clean cure chemistry, strong appearance control, and suitability for demanding hygienic applications.	Good resistance to water, steam, ozone, and many mild chemicals.	Commonly selected where FDA 21 CFR 177.2600 or USP Class VI testing is required; compliance depends on the finished part and processing conditions.	Food-processing equipment, pharmaceutical equipment, medical devices, laboratory systems, and clean manufacturing environments.	Platinum-cured does not automatically mean food-grade or medical-grade; documentation and testing for the final part are still required.
Peroxide-Cured Silicone	30–80 Shore A	Approximately −50 to +200 °C	Reliable general-purpose performance, broad compound availability, and good flexibility over a wide temperature range.	Good resistance to weathering, ozone, water, and many dilute aqueous chemicals.	May be specified using ASTM D2000 and tested using ASTM D395, ASTM D412, ASTM D471, or application-specific methods.	Industrial gaskets, extrusion profiles, electrical seals, and general-purpose molded components.	Post-curing may be needed to reduce residual volatiles; suitability for hygienic applications must be verified.
Fluorosilicone (FVMQ)	50–80 Shore A	Approximately −55 to +175 °C	Better resistance than standard silicone to fuels, mineral oils, and some solvent exposure while retaining good low-temperature flexibility.	Suitable for many hydrocarbon fuels, oils, and selected solvents; exact resistance depends on fluid composition and temperature.	Often specified under ASTM D2000 fluorosilicone classifications; fluid-compatibility testing is recommended for critical service.	Fuel-system seals, aerospace components, automotive fluid systems, and applications exposed to hydrocarbon-based fluids.	Usually more expensive than standard VMQ and generally has lower resistance to hot steam, strong acids, and strong alkalis.
Conductive Silicone	50–80 Shore A	Approximately −50 to +200 °C	Provides electrical conductivity or electromagnetic shielding through conductive fillers while retaining silicone flexibility.	Base silicone offers good weathering and ozone resistance; filler selection can affect corrosion and chemical behavior.	Electrical performance is normally specified by resistance or shielding requirements rather than a single universal gasket standard.	EMI/RFI shielding, conductive enclosure seals, grounding interfaces, and electrical connector systems.	Conductive fillers may increase compression force, reduce elongation, and affect color, density, and long-term chemical resistance.
Sponge or Cellular Silicone	Typically 10–50 Shore 00 or 20–60 Shore A	Approximately −60 to +200 °C	Low density, excellent conformability, vibration isolation, and good compensation for uneven or irregular mating surfaces.	Generally good resistance to weathering, ozone, water, and many mild chemicals; closed-cell versions provide improved moisture resistance.	May be evaluated under ASTM D1056 for cellular rubber and ASTM D395 for compression set, depending on product construction.	Large-panel seals, enclosure doors, vibration control, thermal insulation, and low-clamping-force applications.	Not ideal for high-pressure sealing, sharp extrusion gaps, high-wear sliding contact, or applications requiring very low gas permeability.
Fabric-Reinforced Silicone	Surface hardness varies by construction	Approximately −50 to +200 °C	Improved dimensional stability, tear resistance, pressure capability, and resistance to extrusion compared with unreinforced sheets.	Silicone surface provides good weathering and ozone resistance; the reinforcement fabric may determine chemical and temperature limits.	Testing may include ASTM D412 for tensile properties, ASTM D624 for tear strength, and application-specific pressure testing.	Flange gaskets, expansion joints, duct connections, high-temperature covers, and reinforced sheet-gasket assemblies.	Less conformable than solid unreinforced silicone; fabric edges, laminations, and temperature limits must be considered.
Metal-Detectable Silicone	Typically 50–80 Shore A	Approximately −50 to +200 °C	Silicone sealing performance with detectable filler technology intended to support foreign-material control programs.	Usually similar to the underlying silicone compound; chemical resistance must be verified against the process medium.	May be supplied with food-contact documentation and validated detectability testing; no single universal detectability standard covers every detector and part design.	Food and beverage processing equipment, packaging machinery, and hygienic production lines.	Detectability depends on filler loading, part size, detector settings, orientation, and the surrounding product.
Low-Compression-Set Silicone	40–80 Shore A	Approximately −50 to +200 °C	Improved elastic recovery and reduced permanent deformation during long-term static compression.	Typically good resistance to water, ozone, weathering, and many mild chemicals.	Compression-set performance is commonly evaluated with ASTM D395; temperature-specific testing should match the actual service conditions.	Long-life static flange seals, access panels, electrical enclosures, and assemblies with limited maintenance access.	Low compression set does not guarantee compatibility with fuels, concentrated chemicals, dynamic wear, or high-pressure gas service.
Steam-Resistant Silicone Compound	50–80 Shore A	Typically up to approximately +200 °C, subject to steam pressure and exposure time	Improved resistance to hot water and steam aging compared with standard compounds when correctly formulated and post-cured.	Suitable for specified hot-water and steam conditions; chemical additives, pressure, and cycling can significantly change service life.	May be assessed with ASTM D471 or application-specific hot-water and steam-aging procedures; the exact compound qualification is essential.	Hot-water systems, sterilization-related equipment, food-processing machinery, and high-temperature fluid seals.	Silicone is not universally suitable for continuous high-pressure steam; seal design, pressure, cycling, and compound qualification are critical.
Gas-Permeation-Controlled Silicone	50–80 Shore A	Approximately −50 to +200 °C	Specially formulated or designed to reduce gas transmission compared with conventional silicone compounds.	Often retains standard silicone resistance to weathering and ozone; permeation behavior varies by gas, pressure, temperature, and formulation.	Permeation should be measured using a method appropriate to the gas and application; no single material grade guarantees leak-tight gas performance.	Low-pressure gas seals, sensor housings, analytical equipment, and applications where silicone flexibility is required.	Silicone generally has higher gas permeability than many fluorocarbon or thermoplastic sealing materials; validate leakage over the full service life.
Application-Specific Medical Silicone	20–80 Shore A	Approximately −50 to +200 °C	Controlled biocompatibility profile, clean processing, flexibility, and suitability for sterilization methods selected during device validation.	Generally compatible with water-based media and many biological environments; drug, solvent, and sterilant compatibility must be tested.	May require USP Class VI testing, ISO 10993 biological evaluation, ISO 13485 quality-system controls, and applicable regulatory documentation.	Medical devices, fluid-management systems, diagnostic equipment, and pharmaceutical processing components.	Compliance is application-specific; a material certificate alone does not establish safety for the finished medical device.
High-Temperature Silicone	50–80 Shore A	Approximately −60 to +230 °C for selected compounds	Improved retention of elasticity and resistance to thermal aging at elevated temperatures.	Good resistance to hot air, ozone, and weathering; fluid compatibility remains formulation-dependent.	May be evaluated using ASTM D573 heat aging, ASTM D395 compression set, and ASTM D2000 material classifications.	High-temperature ovens, exhaust-adjacent components, industrial heaters, and thermal processing equipment.	Maximum temperature is compound- and design-dependent; continuous exposure near the upper limit can accelerate compression set and aging.
Low-Temperature Silicone	30–70 Shore A	Approximately −80 to +200 °C for selected compounds	Maintains flexibility and sealing contact at very low temperatures with good resistance to thermal cycling.	Generally good resistance to outdoor exposure and moisture; fluid compatibility must be checked at the lowest operating temperature.	Low-temperature flexibility may be evaluated using ASTM D2137 or an application-specific cold-flexibility procedure.	Cold-storage equipment, outdoor electronics, aerospace systems, and assemblies exposed to severe temperature cycling.	Low-temperature capability does not eliminate limitations related to fuels, abrasion, high-pressure gas, or dynamic wear.
Static-Seal Silicone	30–80 Shore A	Approximately −50 to +200 °C	Optimized for stationary joints, controlled compression, surface conformity, and long-term environmental exposure.	Generally compatible with water, air, ozone, and many mild chemicals.	Design verification commonly considers ASTM D395 compression set, ASTM D412 tensile properties, and leakage testing relevant to the assembly.	Flange seals, inspection covers, housings, access doors, and non-moving joints.	Not automatically suitable for reciprocating, rotary, or abrasive dynamic sealing without specific design and wear validation.
Dynamic-Seal Silicone	50–80 Shore A	Approximately −50 to +175 °C	Selected for flexibility and surface finish in limited-speed dynamic service; may require lubrication or specialized geometry.	Compatibility depends strongly on lubricant, fluid, speed, pressure, and counterface material.	Requires application-specific friction, wear, leakage, and durability testing; static-gasket standards alone are insufficient.	Low-speed actuators, diaphragms, rolling seals, and specialized movement interfaces.	Silicone can have relatively high friction and tear sensitivity; it is often unsuitable for high-speed or abrasive dynamic applications.
*Temperature ranges are typical guidance values, not universal limits. Actual service capability depends on compound formulation, hardness, cure system, compression, pressure, media, exposure time, surface finish, and gasket geometry. Standards and regulatory references should be confirmed for the exact finished part, production process, and intended application. For critical sealing systems, validate leakage, compression set, aging, chemical compatibility, and installation tolerances under representative operating conditions.

Checking Installation Conditions, Durability, and Maintenance Needs

Choosing a silicone gasket starts with the installation environment, not the catalogue photo. Record temperature, pressure, fluid contact, movement, and surface condition. The ASHRAE Handbook—HVAC Systems and Equipment explains that leakage increases when sealing surfaces shift, deform, or experience repeated thermal cycling. A gasket that fits cold may lose contact after heating.

Check the details.

For durability, request compression-set data tested under ASTM D395 conditions. Lower compression set usually indicates better recovery after long compression, but test temperature and duration matter. Shore hardness alone cannot predict sealing life. The U.S. Department of Energy’s building-envelope guidance also identifies air leakage as a meaningful source of energy loss, especially around poorly sealed joints. This makes installation quality part of gasket selection, not an afterthought.

Maintenance needs deserve equal attention. Inspect for flattening, cracks, swelling, discoloration, and residue during scheduled shutdowns. Chemical exposure can weaken silicone even when the temperature remains acceptable. ISO 2230 recommends controlled storage for elastomeric products, including protection from heat, light, ozone, and contamination. Still, storage guidance is not a guarantee. Real equipment ages differently. That assumption can be wrong.

Choose a gasket with documented test conditions, compatible dimensions, and a replacement interval based on field observations. Record torque, gap width, and inspection findings. Small records prevent vague decisions later.
